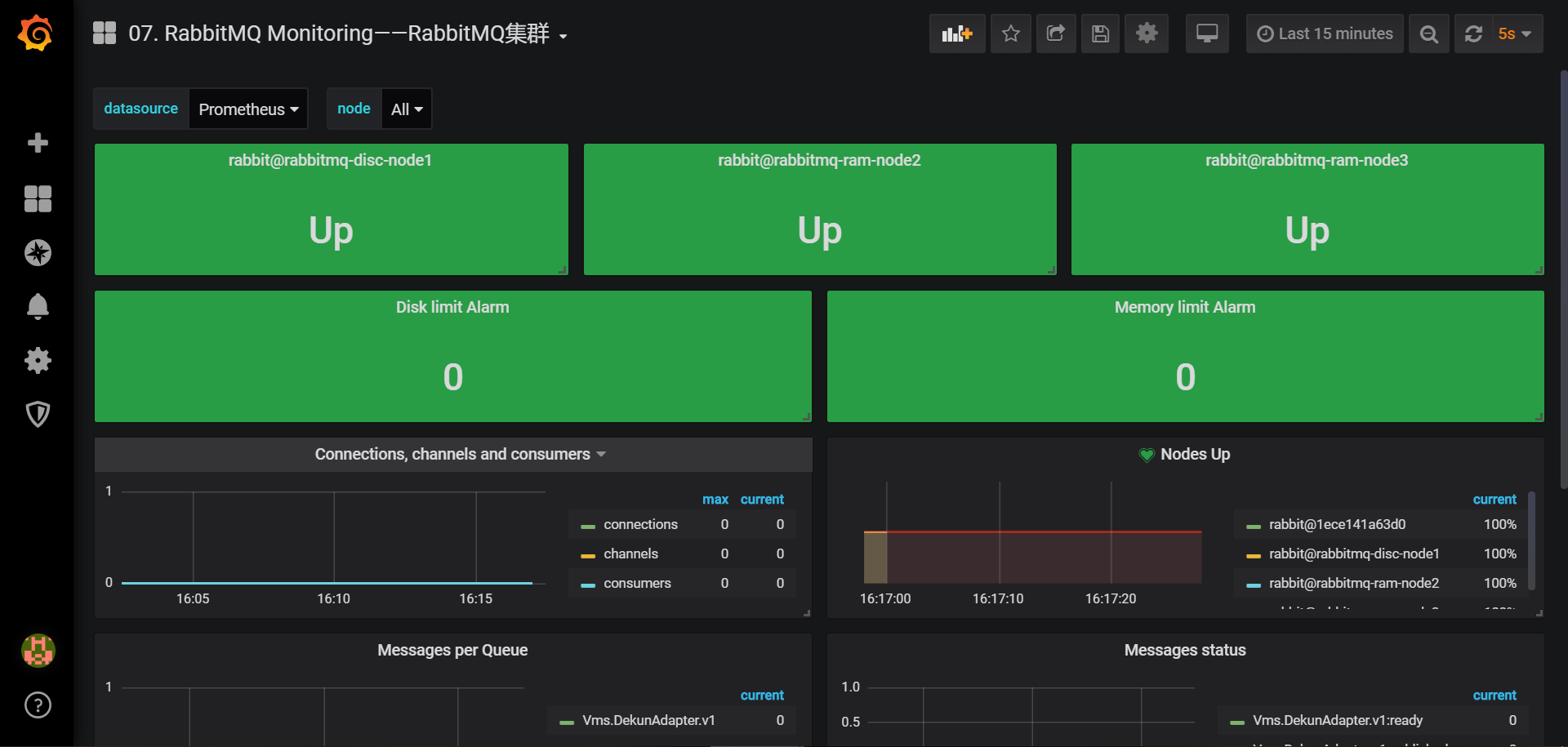

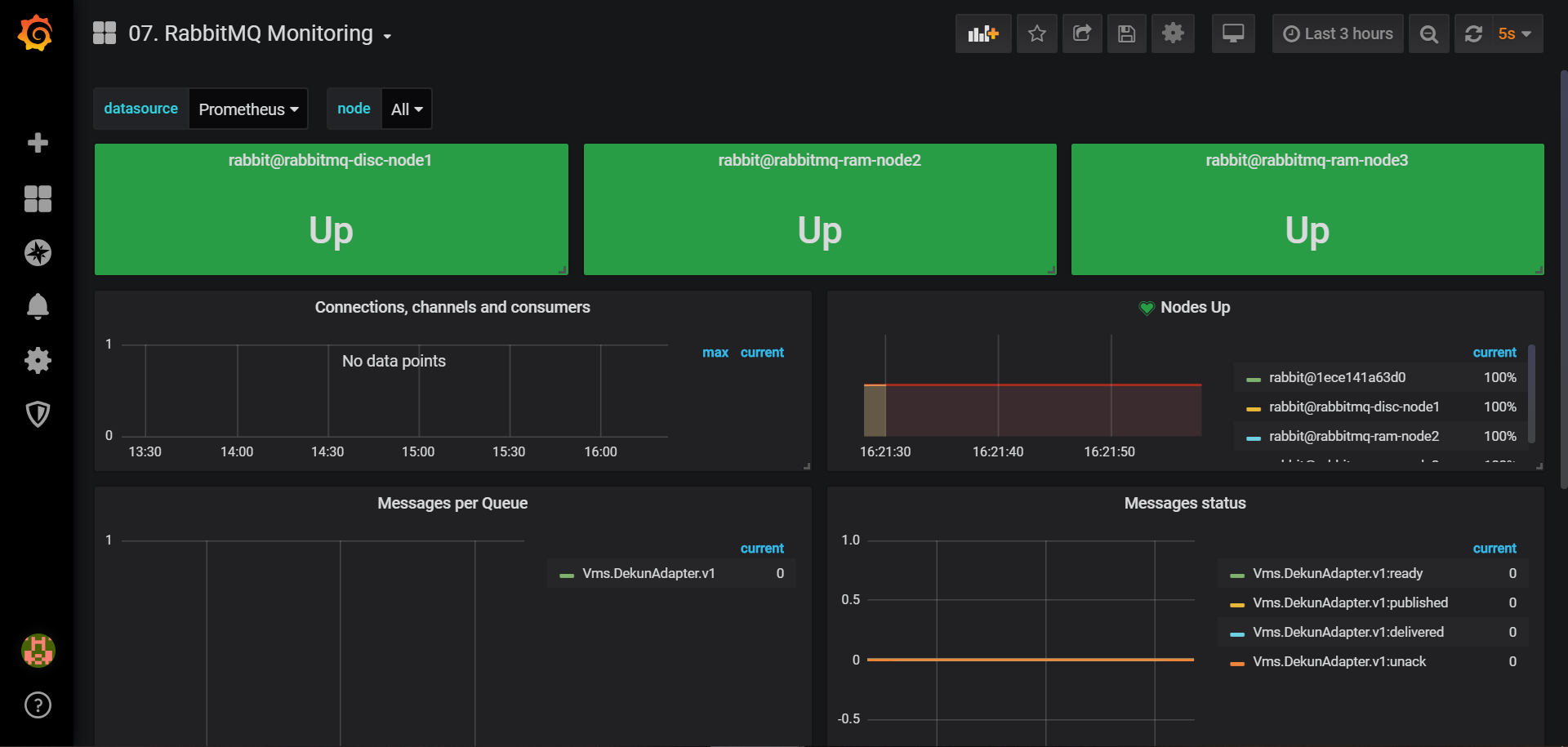

Grafana模板 - RabbitMQ cluster
{
"annotations": {
"list": [
{
"builtIn": 1,
"datasource": "-- Grafana --",
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"type": "dashboard"
}
]
},
"description": "Rabbitmq stats and alerting using RabbitMQ Exporter (https://github.com/kbudde/rabbitmq_exporter)",
"editable": true,
"gnetId": 4279,
"graphTooltip": 1,
"id": 41,
"iteration": 1589530613013,
"links": [],
"panels": [
{
"cacheTimeout": null,
"colorBackground": true,
"colorValue": false,
"colors": [
"#d44a3a",
"rgba(237, 129, 40, 0.89)",
"#299c46"
],
"datasource": "Prometheus",
"format": "none",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 3,
"w": 8,
"x": 0,
"y": 0
},
"hideTimeOverride": true,
"id": 14,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"nullPointMode": "connected",
"nullText": null,
"options": {},
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"repeat": "node",
"scopedVars": {
"node": {
"selected": false,
"text": "rabbit@rabbitmq-disc-node1",
"value": "rabbit@rabbitmq-disc-node1"
}
},
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false
},
"tableColumn": "",
"targets": [
{
"expr": "min(rabbitmq_running{node=~\"$node\"})",
"format": "time_series",
"instant": true,
"intervalFactor": 2,
"legendFormat": "nodes",
"refId": "A"
}
],
"thresholds": "0.1,0.9",
"timeFrom": "30s",
"timeShift": null,
"title": "$node",
"type": "singlestat",
"valueFontSize": "80%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
},
{
"op": "=",
"text": "Up",
"value": "1"
},
{
"op": "=",
"text": "Down",
"value": "0"
}
],
"valueName": "avg"
},
{
"cacheTimeout": null,
"colorBackground": true,
"colorValue": false,
"colors": [
"#d44a3a",
"rgba(237, 129, 40, 0.89)",
"#299c46"
],
"datasource": "Prometheus",
"format": "none",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 3,
"w": 8,
"x": 8,
"y": 0
},
"hideTimeOverride": true,
"id": 23,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"nullPointMode": "connected",
"nullText": null,
"options": {},
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"repeat": null,
"repeatIteration": 1589530613013,
"repeatPanelId": 14,
"scopedVars": {
"node": {
"selected": false,
"text": "rabbit@rabbitmq-ram-node2",
"value": "rabbit@rabbitmq-ram-node2"
}
},
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false
},
"tableColumn": "",
"targets": [
{
"expr": "min(rabbitmq_running{node=~\"$node\"})",
"format": "time_series",
"instant": true,
"intervalFactor": 2,
"legendFormat": "nodes",
"refId": "A"
}
],
"thresholds": "0.1,0.9",
"timeFrom": "30s",
"timeShift": null,
"title": "$node",
"type": "singlestat",
"valueFontSize": "80%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
},
{
"op": "=",
"text": "Up",
"value": "1"
},
{
"op": "=",
"text": "Down",
"value": "0"
}
],
"valueName": "avg"
},
{
"cacheTimeout": null,
"colorBackground": true,
"colorValue": false,
"colors": [
"#d44a3a",
"rgba(237, 129, 40, 0.89)",
"#299c46"
],
"datasource": "Prometheus",
"format": "none",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 3,
"w": 8,
"x": 16,
"y": 0
},
"hideTimeOverride": true,
"id": 24,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"nullPointMode": "connected",
"nullText": null,
"options": {},
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"repeat": null,
"repeatIteration": 1589530613013,
"repeatPanelId": 14,
"scopedVars": {
"node": {
"selected": false,
"text": "rabbit@rabbitmq-ram-node3",
"value": "rabbit@rabbitmq-ram-node3"
}
},
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false
},
"tableColumn": "",
"targets": [
{
"expr": "min(rabbitmq_running{node=~\"$node\"})",
"format": "time_series",
"instant": true,
"intervalFactor": 2,
"legendFormat": "nodes",
"refId": "A"
}
],
"thresholds": "0.1,0.9",
"timeFrom": "30s",
"timeShift": null,
"title": "$node",
"type": "singlestat",
"valueFontSize": "80%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
},
{
"op": "=",
"text": "Up",
"value": "1"
},
{
"op": "=",
"text": "Down",
"value": "0"
}
],
"valueName": "avg"
},
{
"cacheTimeout": null,
"colorBackground": true,
"colorValue": false,
"colors": [
"#299c46",
"rgba(237, 129, 40, 0.89)",
"#d44a3a"
],
"datasource": "Prometheus",
"format": "none",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 3,
"w": 12,
"x": 0,
"y": 3
},
"id": 21,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"nullPointMode": "connected",
"nullText": null,
"options": {},
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false,
"ymax": null,
"ymin": null
},
"tableColumn": "",
"targets": [
{
"expr": "sum(rabbitmq_node_disk_free_alarm{node=~\"$node\"})",
"instant": true,
"refId": "A"
}
],
"thresholds": "1,1",
"timeFrom": null,
"timeShift": null,
"title": "Disk limit Alarm",
"type": "singlestat",
"valueFontSize": "80%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
}
],
"valueName": "avg"
},
{
"cacheTimeout": null,
"colorBackground": true,
"colorValue": false,
"colors": [
"#299c46",
"rgba(237, 129, 40, 0.89)",
"#d44a3a"
],
"datasource": "Prometheus",
"description": "",
"format": "none",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 3,
"w": 12,
"x": 12,
"y": 3
},
"id": 22,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"nullPointMode": "connected",
"nullText": null,
"options": {},
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false,
"ymax": null,
"ymin": null
},
"tableColumn": "",
"targets": [
{
"expr": "sum(rabbitmq_node_mem_alarm{node=~\"$node\"})",
"instant": true,
"refId": "A"
}
],
"thresholds": "1,1",
"timeFrom": null,
"timeShift": null,
"title": "Memory limit Alarm",
"type": "singlestat",
"valueFontSize": "80%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
}
],
"valueName": "avg"
},
{
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"decimals": 0,
"fill": 4,
"fillGradient": 0,
"gridPos": {
"h": 4,
"w": 12,
"x": 0,
"y": 6
},
"id": 5,
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": true,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "sum(rabbitmq_connections)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "connections",
"metric": "rabbitmq_connectionsTotal",
"refId": "A",
"step": 2
},
{
"expr": "sum(rabbitmq_channels)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "channels",
"refId": "B"
},
{
"expr": "sum(rabbitmq_queue_consumers)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "consumers",
"refId": "C"
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "Connections, channels and consumers",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": 0,
"format": "short",
"label": "",
"logBase": 1,
"max": null,
"min": "0",
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"alert": {
"conditions": [
{
"evaluator": {
"params": [
1
],
"type": "lt"
},
"operator": {
"type": "and"
},
"query": {
"params": [
"A",
"10s",
"now"
]
},
"reducer": {
"params": [],
"type": "last"
},
"type": "query"
},
{
"evaluator": {
"params": [],
"type": "no_value"
},
"operator": {
"type": "or"
},
"query": {
"params": [
"A",
"10s",
"now"
]
},
"reducer": {
"params": [],
"type": "last"
},
"type": "query"
}
],
"executionErrorState": "alerting",
"frequency": "60s",
"handler": 1,
"message": "Some of the RabbitMQ node is down",
"name": "Node Stats alert",
"noDataState": "alerting",
"notifications": []
},
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"decimals": 0,
"fill": 1,
"fillGradient": 0,
"gridPos": {
"h": 4,
"w": 12,
"x": 12,
"y": 6
},
"hideTimeOverride": true,
"id": 12,
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 1,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "rabbitmq_running",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{node}}",
"metric": "rabbitmq_running",
"refId": "A",
"step": 2
}
],
"thresholds": [
{
"colorMode": "critical",
"fill": true,
"line": true,
"op": "lt",
"value": 1
}
],
"timeFrom": "30s",
"timeRegions": [],
"timeShift": null,
"title": "Nodes Up",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "cumulative"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": 0,
"format": "percentunit",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": false
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"decimals": 0,
"fill": 4,
"fillGradient": 0,
"gridPos": {
"h": 5,
"w": 12,
"x": 0,
"y": 10
},
"id": 2,
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "rabbitmq_queue_messages",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{queue}}",
"metric": "rabbitmq_queue_messages",
"refId": "A",
"step": 2
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "Messages per Queue",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": 0,
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": "0",
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"decimals": 0,
"fill": 4,
"fillGradient": 0,
"gridPos": {
"h": 5,
"w": 12,
"x": 12,
"y": 10
},
"id": 8,
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "max(rabbitmq_queue_messages_ready) by (queue)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{queue}}:ready",
"metric": "rabbitmq_queue_messages_ready",
"refId": "A",
"step": 2
},
{
"expr": "max(rabbitmq_queue_messages_published_total) by (queue)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{queue}}:published",
"metric": "rabbitmq_queue_messages_published_total",
"refId": "B",
"step": 2
},
{
"expr": "max(rabbitmq_queue_messages_delivered_total) by (queue)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{queue}}:delivered",
"metric": "rabbitmq_queue_messages_delivered_total",
"refId": "C",
"step": 2
},
{
"expr": "sum by (queue)(rabbitmq_queue_messages_unacknowledged)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{queue}}:unack",
"metric": "ack",
"refId": "D",
"step": 2
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "Messages status",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"fill": 1,
"fillGradient": 0,
"gridPos": {
"h": 6,
"w": 12,
"x": 0,
"y": 15
},
"id": 17,
"interval": "",
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "min(rabbitmq_node_disk_free{node=~\"$node\"}) by (node)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{node}}:free",
"metric": "rabbitmq_node_mem_used",
"refId": "A",
"step": 2
},
{
"expr": "min(rabbitmq_node_disk_free_limit{node=~\"$node\"}) by (node)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{node}}:limit",
"metric": "rabbitmq_node_mem_used",
"refId": "B",
"step": 2
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "Disk free",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": 0,
"format": "bits",
"label": null,
"logBase": 1,
"max": "100",
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"alert": {
"alertRuleTags": {},
"conditions": [
{
"evaluator": {
"params": [
80
],
"type": "gt"
},
"operator": {
"type": "and"
},
"query": {
"params": [
"A",
"5m",
"now"
]
},
"reducer": {
"params": [],
"type": "avg"
},
"type": "query"
}
],
"executionErrorState": "alerting",
"for": "0m",
"frequency": "60s",
"handler": 1,
"name": "Memory (used / limit) alert",
"noDataState": "no_data",
"notifications": []
},
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"description": "",
"fill": 1,
"fillGradient": 0,
"gridPos": {
"h": 6,
"w": 12,
"x": 12,
"y": 15
},
"id": 9,
"interval": "",
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {
"dataLinks": []
},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "sum(rabbitmq_node_mem_used{node=~\"$node\"}) by (node) / sum(rabbitmq_node_mem_limit{node=~\"$node\"}) by (node) *100",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{node}}",
"metric": "rabbitmq_node_mem_used",
"refId": "A",
"step": 2
}
],
"thresholds": [
{
"colorMode": "critical",
"fill": true,
"line": true,
"op": "gt",
"value": 80
}
],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "Memory usage",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": 0,
"format": "percent",
"label": "",
"logBase": 1,
"max": "100",
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
}
],
"refresh": "5s",
"schemaVersion": 18,
"style": "dark",
"tags": [
"rabbitmq",
"prometheus"
],
"templating": {
"list": [
{
"current": {
"text": "Prometheus",
"value": "Prometheus"
},
"hide": 0,
"includeAll": false,
"label": null,
"multi": false,
"name": "datasource",
"options": [],
"query": "prometheus",
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"type": "datasource"
},
{
"allValue": null,
"current": {
"text": "All",
"value": [
"$__all"
]
},
"datasource": "Prometheus",
"definition": "label_values(rabbitmq_running{cluster=\"rabbit@rabbitmq-disc-node1\"}, node)",
"hide": 0,
"includeAll": true,
"label": null,
"multi": true,
"name": "node",
"options": [],
"query": "label_values(rabbitmq_running{cluster=\"rabbit@rabbitmq-disc-node1\"}, node)",
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 0,
"tagValuesQuery": "",
"tags": [],
"tagsQuery": "",
"type": "query",
"useTags": false
}
]
},
"time": {
"from": "now-15m",
"to": "now"
},
"timepicker": {
"refresh_intervals": [
"5s",
"10s",
"30s",
"1m",
"5m",
"15m",
"30m",
"1h",
"2h",
"1d"
],
"time_options": [
"5m",
"15m",
"1h",
"6h",
"12h",
"24h",
"2d",
"7d",
"30d"
]
},
"timezone": "browser",
"title": "RabbitMQ Monitoring——RabbitMQ集群"
}
{
"annotations": {
"list": [
{
"builtIn": 1,
"datasource": "-- Grafana --",
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"type": "dashboard"
}
]
},
"description": "Rabbitmq stats and alerting using RabbitMQ Exporter (https://github.com/kbudde/rabbitmq_exporter)",
"editable": true,
"gnetId": 4279,
"graphTooltip": 1,
"id": 25,
"iteration": 1589530913210,
"links": [],
"panels": [
{
"cacheTimeout": null,
"colorBackground": true,
"colorValue": false,
"colors": [
"#d44a3a",
"rgba(237, 129, 40, 0.89)",
"#299c46"
],
"datasource": "Prometheus",
"format": "none",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 3,
"w": 8,
"x": 0,
"y": 0
},
"hideTimeOverride": true,
"id": 14,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"nullPointMode": "connected",
"nullText": null,
"options": {},
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"repeat": "node",
"scopedVars": {
"node": {
"selected": false,
"text": "rabbit@rabbitmq-disc-node1",
"value": "rabbit@rabbitmq-disc-node1"
}
},
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false
},
"tableColumn": "",
"targets": [
{
"expr": "rabbitmq_running{node=\"$node\"}",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "node",
"refId": "A"
}
],
"thresholds": "0.1,0.9",
"timeFrom": "30s",
"title": "$node",
"type": "singlestat",
"valueFontSize": "80%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
},
{
"op": "=",
"text": "Up",
"value": "1"
},
{
"op": "=",
"text": "Down",
"value": "0"
}
],
"valueName": "avg"
},
{
"cacheTimeout": null,
"colorBackground": true,
"colorValue": false,
"colors": [
"#d44a3a",
"rgba(237, 129, 40, 0.89)",
"#299c46"
],
"datasource": "Prometheus",
"format": "none",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 3,
"w": 8,
"x": 8,
"y": 0
},
"hideTimeOverride": true,
"id": 18,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"nullPointMode": "connected",
"nullText": null,
"options": {},
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"repeat": null,
"repeatIteration": 1589530913210,
"repeatPanelId": 14,
"scopedVars": {
"node": {
"selected": false,
"text": "rabbit@rabbitmq-ram-node2",
"value": "rabbit@rabbitmq-ram-node2"
}
},
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false
},
"tableColumn": "",
"targets": [
{
"expr": "rabbitmq_running{node=\"$node\"}",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "node",
"refId": "A"
}
],
"thresholds": "0.1,0.9",
"timeFrom": "30s",
"title": "$node",
"type": "singlestat",
"valueFontSize": "80%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
},
{
"op": "=",
"text": "Up",
"value": "1"
},
{
"op": "=",
"text": "Down",
"value": "0"
}
],
"valueName": "avg"
},
{
"cacheTimeout": null,
"colorBackground": true,
"colorValue": false,
"colors": [
"#d44a3a",
"rgba(237, 129, 40, 0.89)",
"#299c46"
],
"datasource": "Prometheus",
"format": "none",
"gauge": {
"maxValue": 100,
"minValue": 0,
"show": false,
"thresholdLabels": false,
"thresholdMarkers": true
},
"gridPos": {
"h": 3,
"w": 8,
"x": 16,
"y": 0
},
"hideTimeOverride": true,
"id": 19,
"interval": null,
"links": [],
"mappingType": 1,
"mappingTypes": [
{
"name": "value to text",
"value": 1
},
{
"name": "range to text",
"value": 2
}
],
"maxDataPoints": 100,
"nullPointMode": "connected",
"nullText": null,
"options": {},
"postfix": "",
"postfixFontSize": "50%",
"prefix": "",
"prefixFontSize": "50%",
"rangeMaps": [
{
"from": "null",
"text": "N/A",
"to": "null"
}
],
"repeat": null,
"repeatIteration": 1589530913210,
"repeatPanelId": 14,
"scopedVars": {
"node": {
"selected": false,
"text": "rabbit@rabbitmq-ram-node3",
"value": "rabbit@rabbitmq-ram-node3"
}
},
"sparkline": {
"fillColor": "rgba(31, 118, 189, 0.18)",
"full": false,
"lineColor": "rgb(31, 120, 193)",
"show": false
},
"tableColumn": "",
"targets": [
{
"expr": "rabbitmq_running{node=\"$node\"}",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "node",
"refId": "A"
}
],
"thresholds": "0.1,0.9",
"timeFrom": "30s",
"title": "$node",
"type": "singlestat",
"valueFontSize": "80%",
"valueMaps": [
{
"op": "=",
"text": "N/A",
"value": "null"
},
{
"op": "=",
"text": "Up",
"value": "1"
},
{
"op": "=",
"text": "Down",
"value": "0"
}
],
"valueName": "avg"
},
{
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"decimals": 0,
"fill": 4,
"gridPos": {
"h": 4,
"w": 12,
"x": 0,
"y": 3
},
"id": 5,
"interval": "",
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": true,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "rabbitmq_connections{cluster=\"rabbit@rabbit1\"}",
"format": "time_series",
"interval": "",
"intervalFactor": 2,
"legendFormat": "connections",
"metric": "rabbitmq_connectionsTotal",
"refId": "A",
"step": 2
},
{
"expr": "rabbitmq_channels{cluster=\"rabbit@rabbit1\"}",
"format": "time_series",
"interval": "",
"intervalFactor": 2,
"legendFormat": "channels",
"refId": "B"
},
{
"expr": "rabbitmq_consumers{cluster=\"rabbit@rabbit1\"}",
"format": "time_series",
"interval": "",
"intervalFactor": 2,
"legendFormat": "consumers",
"refId": "C"
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "Connections, channels and consumers",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": 0,
"format": "short",
"label": "",
"logBase": 1,
"max": null,
"min": "0",
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"alert": {
"conditions": [
{
"evaluator": {
"params": [
1
],
"type": "lt"
},
"operator": {
"type": "and"
},
"query": {
"params": [
"A",
"10s",
"now"
]
},
"reducer": {
"params": [],
"type": "last"
},
"type": "query"
},
{
"evaluator": {
"params": [],
"type": "no_value"
},
"operator": {
"type": "or"
},
"query": {
"params": [
"A",
"10s",
"now"
]
},
"reducer": {
"params": [],
"type": "last"
},
"type": "query"
}
],
"executionErrorState": "alerting",
"frequency": "60s",
"handler": 1,
"message": "Some of the RabbitMQ node is down",
"name": "Node Stats alert",
"noDataState": "alerting",
"notifications": []
},
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"decimals": 0,
"fill": 1,
"gridPos": {
"h": 4,
"w": 12,
"x": 12,
"y": 3
},
"hideTimeOverride": true,
"id": 12,
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 1,
"links": [],
"nullPointMode": "null",
"options": {},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "rabbitmq_running",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{node}}",
"metric": "rabbitmq_running",
"refId": "A",
"step": 2
}
],
"thresholds": [
{
"colorMode": "critical",
"fill": true,
"line": true,
"op": "lt",
"value": 1
}
],
"timeFrom": "30s",
"timeRegions": [],
"timeShift": null,
"title": "Nodes Up",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "cumulative"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": 0,
"format": "percentunit",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": false
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"decimals": 0,
"fill": 4,
"gridPos": {
"h": 7,
"w": 12,
"x": 0,
"y": 7
},
"id": 2,
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "rabbitmq_queue_messages",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{queue}}",
"metric": "rabbitmq_queue_messages",
"refId": "A",
"step": 2
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "Messages per Queue",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"decimals": 0,
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": "0",
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"decimals": 0,
"fill": 4,
"gridPos": {
"h": 7,
"w": 12,
"x": 12,
"y": 7
},
"id": 8,
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "sum by (queue)(rabbitmq_queue_messages_ready)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{queue}}:ready",
"metric": "rabbitmq_queue_messages_ready",
"refId": "A",
"step": 2
},
{
"expr": "sum by (queue)(rabbitmq_queue_messages_published_total)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{queue}}:published",
"metric": "rabbitmq_queue_messages_published_total",
"refId": "B",
"step": 2
},
{
"expr": "sum by (queue)(rabbitmq_queue_messages_delivered_total)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{queue}}:delivered",
"metric": "rabbitmq_queue_messages_delivered_total",
"refId": "C",
"step": 2
},
{
"expr": "sum by (queue)(rabbitmq_queue_messages_unacknowledged)",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{queue}}:unack",
"metric": "ack",
"refId": "D",
"step": 2
}
],
"thresholds": [],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "Messages status",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"alert": {
"conditions": [
{
"evaluator": {
"params": [
167197452
],
"type": "lt"
},
"operator": {
"type": "and"
},
"query": {
"params": [
"A",
"5m",
"now"
]
},
"reducer": {
"params": [],
"type": "avg"
},
"type": "query"
}
],
"executionErrorState": "alerting",
"frequency": "60s",
"handler": 1,
"name": "Memory (used / limit) alert",
"noDataState": "no_data",
"notifications": []
},
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"fill": 1,
"gridPos": {
"h": 7,
"w": 12,
"x": 0,
"y": 14
},
"id": 17,
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "rabbitmq_node_disk_free",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{node}}:free",
"metric": "rabbitmq_node_mem_used",
"refId": "A",
"step": 2
},
{
"expr": "rabbitmq_node_disk_free_limit",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{node}}:limit",
"metric": "node_mem",
"refId": "B",
"step": 2
}
],
"thresholds": [
{
"colorMode": "critical",
"fill": true,
"line": true,
"op": "lt",
"value": 167197452
}
],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "Free disk space",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"format": "decbytes",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
},
{
"alert": {
"conditions": [
{
"evaluator": {
"params": [
1133956386
],
"type": "gt"
},
"operator": {
"type": "and"
},
"query": {
"params": [
"A",
"5m",
"now"
]
},
"reducer": {
"params": [],
"type": "avg"
},
"type": "query"
}
],
"executionErrorState": "alerting",
"frequency": "60s",
"handler": 1,
"name": "Memory (used / limit) alert",
"noDataState": "no_data",
"notifications": []
},
"aliasColors": {},
"bars": false,
"dashLength": 10,
"dashes": false,
"datasource": "Prometheus",
"fill": 1,
"gridPos": {
"h": 7,
"w": 12,
"x": 12,
"y": 14
},
"id": 9,
"legend": {
"alignAsTable": true,
"avg": false,
"current": true,
"max": false,
"min": false,
"rightSide": true,
"show": true,
"total": false,
"values": true
},
"lines": true,
"linewidth": 2,
"links": [],
"nullPointMode": "null",
"options": {},
"percentage": false,
"pointradius": 5,
"points": false,
"renderer": "flot",
"seriesOverrides": [],
"spaceLength": 10,
"stack": false,
"steppedLine": false,
"targets": [
{
"expr": "rabbitmq_node_mem_used",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{node}}:used",
"metric": "rabbitmq_node_mem_used",
"refId": "A",
"step": 2
},
{
"expr": "rabbitmq_node_mem_limit",
"format": "time_series",
"intervalFactor": 2,
"legendFormat": "{{node}}:limit",
"metric": "node_mem",
"refId": "B",
"step": 2
}
],
"thresholds": [
{
"colorMode": "critical",
"fill": true,
"line": true,
"op": "gt",
"value": 1133956386
}
],
"timeFrom": null,
"timeRegions": [],
"timeShift": null,
"title": "Used memory",
"tooltip": {
"shared": true,
"sort": 0,
"value_type": "individual"
},
"type": "graph",
"xaxis": {
"buckets": null,
"mode": "time",
"name": null,
"show": true,
"values": []
},
"yaxes": [
{
"format": "decbytes",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
},
{
"format": "short",
"label": null,
"logBase": 1,
"max": null,
"min": null,
"show": true
}
],
"yaxis": {
"align": false,
"alignLevel": null
}
}
],
"refresh": "5s",
"schemaVersion": 18,
"style": "dark",
"tags": [
"rabbitmq",
"prometheus"
],
"templating": {
"list": [
{
"current": {
"text": "Prometheus",
"value": "Prometheus"
},
"hide": 0,
"includeAll": false,
"label": null,
"multi": false,
"name": "datasource",
"options": [],
"query": "prometheus",
"refresh": 1,
"regex": "Prometheus",
"skipUrlSync": false,
"type": "datasource"
},
{
"allValue": null,
"current": {
"text": "All",
"value": "$__all"
},
"datasource": "Prometheus",
"definition": "label_values(rabbitmq_running{cluster=\"rabbit@rabbitmq-disc-node1\"}, node)",
"hide": 0,
"includeAll": true,
"label": null,
"multi": true,
"name": "node",
"options": [],
"query": "label_values(rabbitmq_running{cluster=\"rabbit@rabbitmq-disc-node1\"}, node)",
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 0,
"tagValuesQuery": "",
"tags": [],
"tagsQuery": "",
"type": "query",
"useTags": false
}
]
},
"time": {
"from": "now-3h",
"to": "now"
},
"timepicker": {
"refresh_intervals": [
"5s",
"10s",
"30s",
"1m",
"5m",
"15m",
"30m",
"1h",
"2h",
"1d"
],
"time_options": [
"5m",
"15m",
"1h",
"6h",
"12h",
"24h",
"2d",
"7d",
"30d"
]
},
"timezone": "browser",
"title": "RabbitMQ Monitoring"
}
